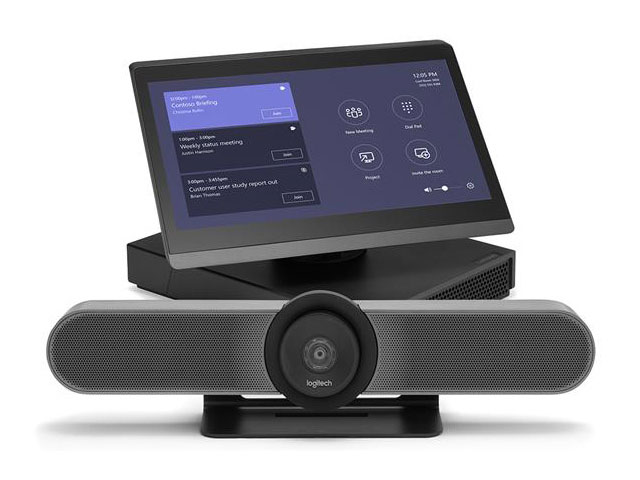

ThinkSmart Hub 500 with Logitech Meetup system (Huddle/Small Room)

Built for small room deployments and driving a great video conferencing experience for Skype for Business and Microsoft Teams.

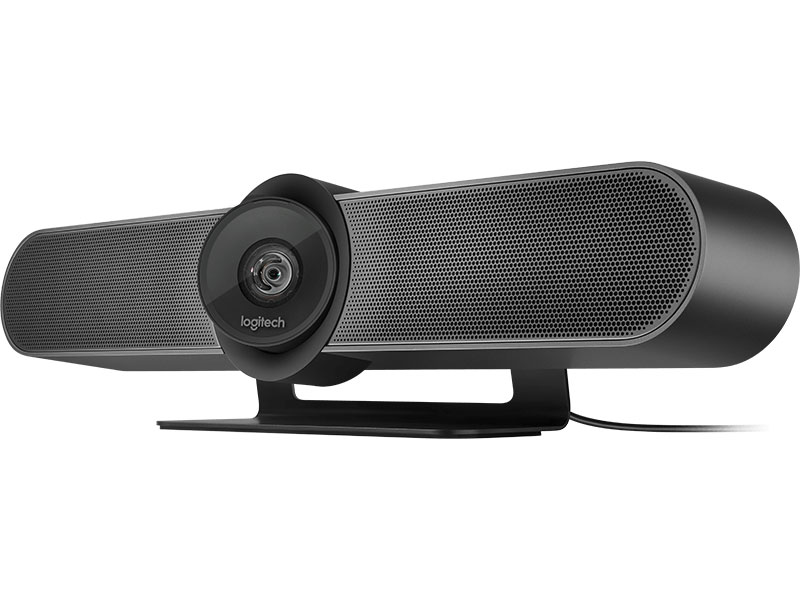

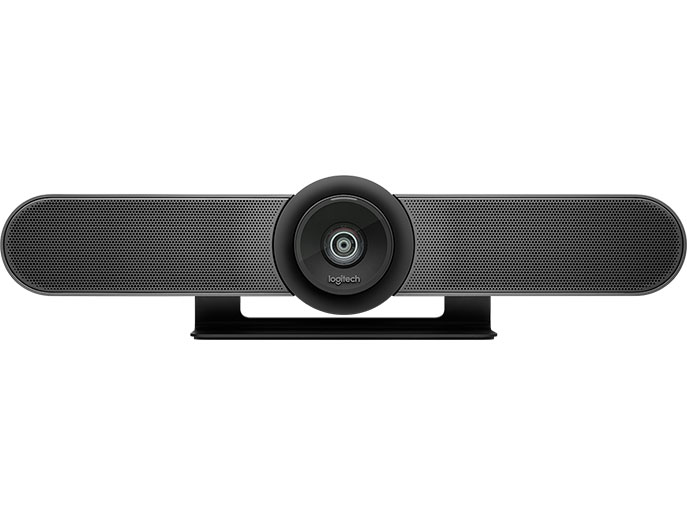

MeetUp is Logitechs premier ConferenceCam designed for small conference rooms and huddle rooms. Stop crowding around laptops. With 4K optics and a super-wide 120-degree field of view, MeetUp makes every seat at the table clearly visible. Its integrated audio is optimized for huddle room acoustics, ensuring everyone can be heard as well as seen.

A room accommodating up to 7 people, a small sized conferencing room is an enclosed space that is reserved for meetings. This setup is designed so that the camera will capture the faces and the microphone will pick up the voices off all the participants in a space as large as 4.5 x 4.5 metres square.

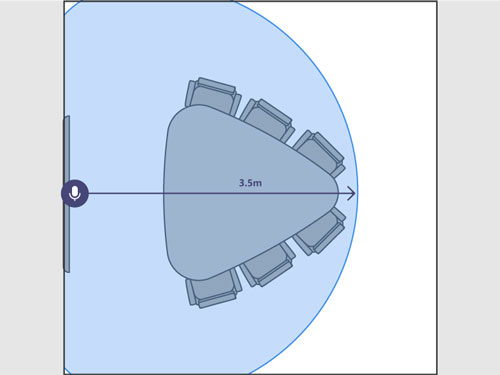

Microphone: A directional microphone is sitting at the edge of the room, usually mounted on a wall along with a camera and a display. The microphone is designed to pick up the voices of each of the participants who are sitting with within the microphone’s pickup range of approximately 3.5 metres.

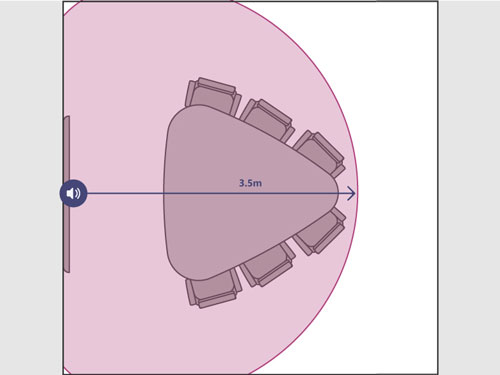

Speaker: A loudspeaker is mounted to the wall or at the edge of a room and near the camera and display so that meeting audio projects to all listeners at a distance of up to 3.5 metres.

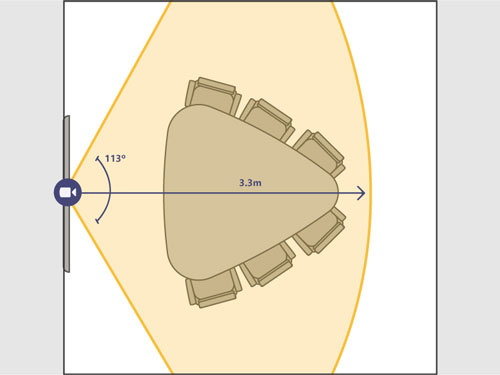

Camera: A camera is mounted on the wall near a display. It is located within a range of approximately between 1 and 3.3 metres of meeting participants. It is designed so that it will capture those within a horizontal field of view of at least 90º.

What's in the box?

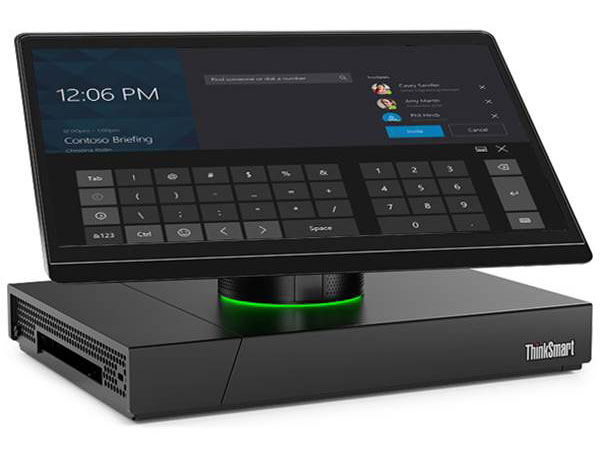

Lenovo Hub 500
Logitech Meetup
3 x HDMI cables
Dongle adapter ring
Ethernet cable
Logitech Meetup mount XL
2 x Ethernet cables
Zip ties, screws, cable management parts

TECH SPECS:

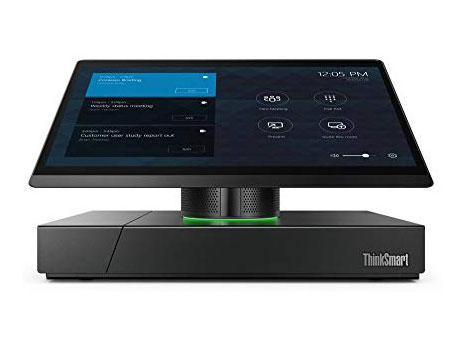

CONSOLE (x1):

Connectivity: 1 x HDMI-in including capture card, 2 x HDMI-out, 1 x RJ-45 Ethernet, 4 x USB 3.0 (Type A), 1 x 3.5mm stereo jack,
LAN Intel I219LM Jacksonville, Wifi 2x2AC Intel Winstorm Peak 8265 Bluetooth 4.2, IR sensor

Screen Resolution: 1920 x 1080 pixels

Aspect Ratio: 16:9

Screen size: 11.6"

Dimensions: 260 x 194 x 178 mm

Security: Kensington Lock

SPEAKER (x1):

Output (W): 10 watts

Output (DB): Volume adjustable to 95 dB SPL at 1/2 metre peak, Speaker sensitivity 86.5+/-3dB SPL at 1/2 metre

Features: Patent-pending anti-vibration enclosure improves voice clarity while limiting sound transmission to adjacent spaces.
Peak-limiting algorithm prevents even momentary speaker clipping to prevent distortion.

MICROPHONE:

Pickup radius: 4 metres & 5 metres with optional expansion microphone

Microphones: 3 beamforming microphones in the MeetUp device

Max Microphones: 4, including one optional expansion microphone on the table

Microphone placement: Front of room and optional expansion microphone on the table

CAMERA:

Microsoft Teams Streaming: 1080p (camera supports up to 4K 3840x2160 pixels at 30 fps)

Horizontal field of view: 113°

Vertical field of view: 80.7°

Diagonal field of view: 120°

Zoom: 5 x Digital

Pan/tilt: ± 25°/± 15°

Mount options: Wall mount (included) or table

Cable type: USB 2.0

Included cable length: 5 metres

Separate power adapter: Yes, included

3 YEAR ONSITE WARRANTY
