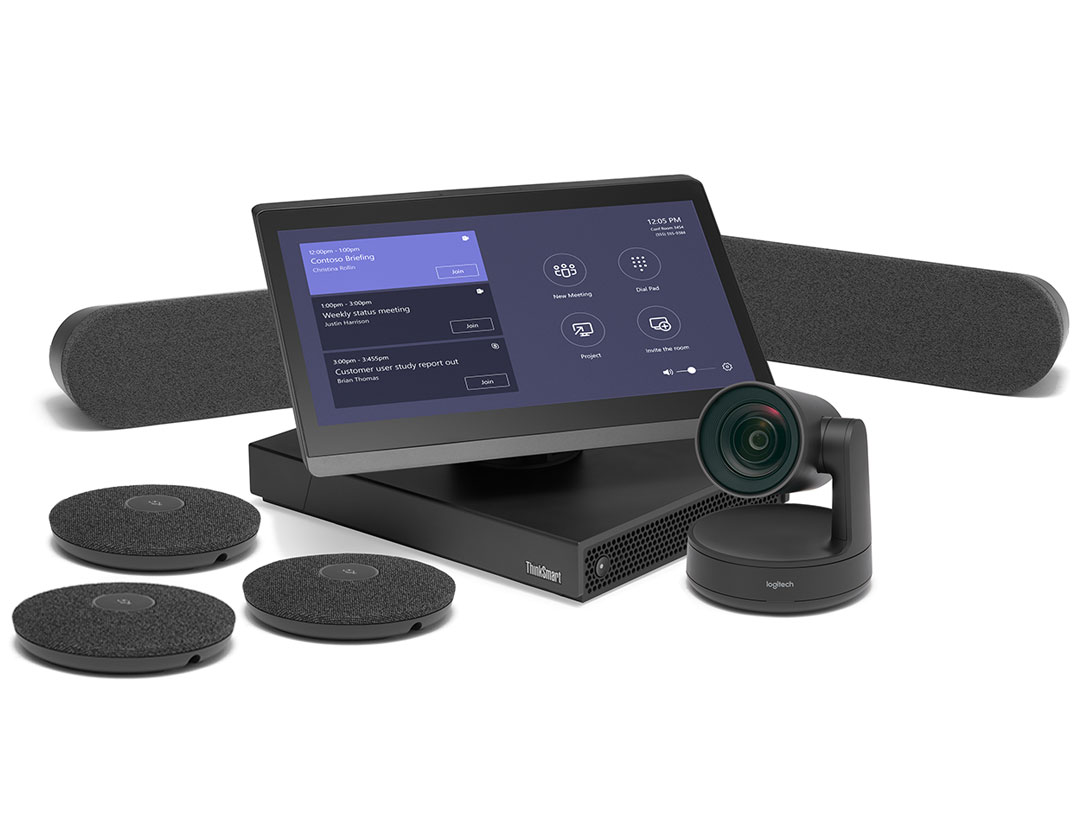

ThinkSmart Hub 500 Logitech Rally Plus system (Large Room)

Combined for large sized conferencing room deployments, the Lenovo ThinkSmart Hub 500 and Logitech Rally Plus, and three microphones enable great video conferencing for Skype for Business and Teams.

A room accommodating up to 18 people, a large sized conferencing room is a reserved, enclosed space. This setup is designed so that the camera will capture the faces and the microphone will pick up the voices off all the participants in a space as large as 4.5 x 8.5 metres. Large meeting rooms usually involve a long conferencing table for meeting participants to sit around with a display for meeting content setup at one end of the room.

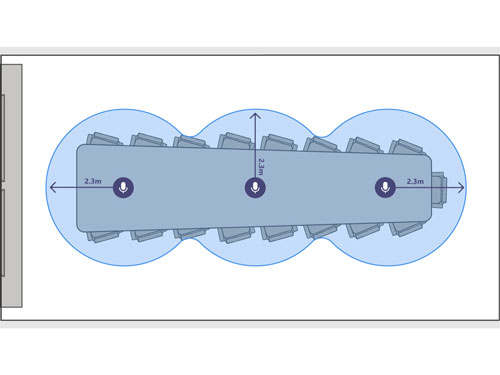

Microphone: Meeting participants sit around a table where three microphones are distributed so that they can pick up voices of participants sitting within a range of 2.3 metres.

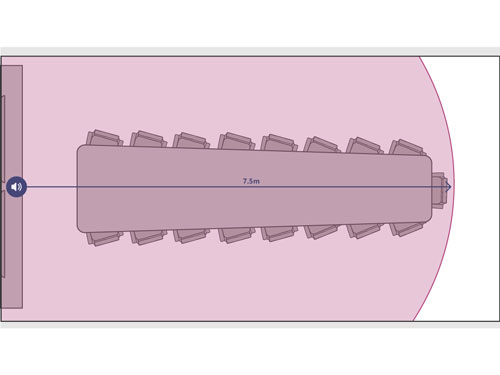

Speaker: A loudspeaker is located on the table so that meeting audio reaches all the listeners sitting around the table within 7.5 metres.

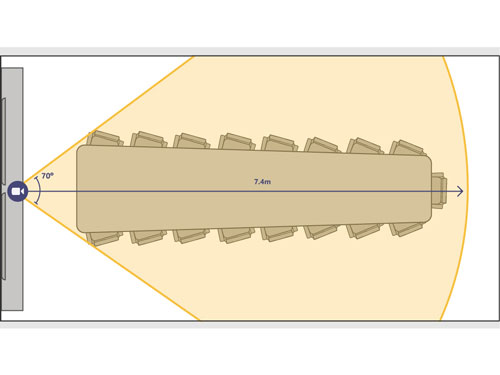

Camera: A camera is mounted at the edge of the room near a display. It is located within a range of approximately between 1 and 7.4 metres of meeting participants. It is designed so that it will capture those within a horizontal field of view of at least 70º.

What's in the box?

Lenovo Hub 500
Logitech Rally Plus (Ultra-HD ConferenceCam)
Logitech Rally extension mic pod
Logitech Rally mic hub
EDID
2 x HDMI cables
Dongle adapter ring
2 x Ethernet cables
Logitech Rally mounting kit
2 x Ethernet cables
Zip ties, screws, cable management parts

TECH SPECS:

CONSOLE (x1):

Connectivity: 1 x HDMI-in including capture card, 2 x HDMI-out, 1 x RJ-45 Ethernet, 4 x USB 3.0 (Type A), 1 x 3.5mm stereo jack,
LAN Intel I219LM Jacksonville, Wifi 2x2AC Intel Winstorm Peak 8265 Bluetooth 4.2, IR sensor

Screen Resolution: 1920 x 1080 pixels

Aspect Ratio: 16:9

Screen size: 11.6"

Dimensions: 260 x 194 x 178 mm

Security: Kensington Lock

SPEAKER (x1):

Maximum Extra speakers: 2

Output (W): 10 watts per channel

Output (DB): 95 dB SPL @ 1W, 100dB SPL @7.5W, both +/-2dB at 1/2 metre

Stereo Support: Yes (for playing local audio only)

Features: High-performance 3inch (76mm) driver with rare-earth magnet.
Patent-pending suspension system eliminates vibration-induced camera shake and audio interference.
Single Mini XLR cable connection for both signal and power.
Sensitivity: 95+/-2dB SPL at ½ meter. Distortion: 200Hz–300Hz < 2.5%, 300Hz–10kHz <1%@7.5W.
Speaker sampling rate: 48 kHz.

MICROPHONE:

Pickup radius: 4.5 metres

Microphones: Three mic pods included, each with four omnidirectional microphones forming eight acoustic beams.
Includes acoustic echo cancellation, voice activity detector, and background noise suppression

Max Microphones: 7 Mic pods

Microphone placement: Tabletop

CAMERA:

Microsoft Teams Streaming: 1080p (camera supports up to 4K at 30 fps)

Horizontal field of view: 82.1°

Vertical field of view: 52.2°

Diagonal field of view: 90°

Zoom: 15x HD optical & digital zoom

Pan/tilt: ± 90° pan and +50° /- 90° tilt

Mount options: Tabletop and wall through included tripod thread or mounting kit included in the bundle

Cable type: USB 3.1 Type C to USB Type C 3.1

Included cable length: 2 metres

Separate power adapter: Yes, included

3 YEAR ONSITE WARRANTY
