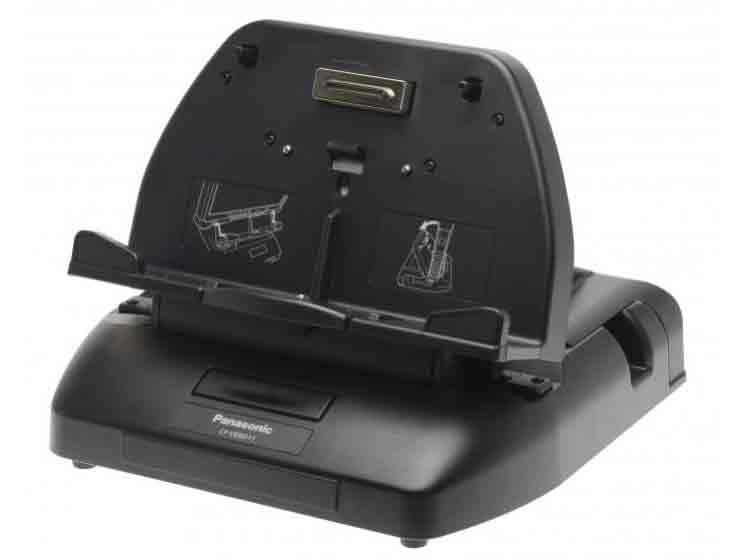

Panasonic Docking Cradle for CF-D1

Panasonic Docking Cradle for CF-D1

Compatible with CF-D1 Toughbook only

Power Supply
Input DC15.6 V (Use the specified AC adaptor supplied with the computer or one sold separately as an accessory.)

Expansion Bus Connector
100-pin

USB 2.0 Port*1
USB 2.0 × 5 (complies with USB 2.0) Allowable current for each port : 500 mA

USB 2.0 Port (Pass Through)*1
USB 2.0 × 1 (complies with USB 2.0) Allowable current for each port : 500 mA

LAN Port
IEEE802.3ab 1000BASE-T, IEEE802.3u 100BASE-TX, IEEE802.3 10BASE-T (RJ-45)

HDMI Port*1*2
HDMI × 1 For exclusive use with HDMI standard

VGA Port
Mini Dsub 15-pin female (Analog interface)

Serial Port
RS-232C Dsub 9-pin

Microphone Jack
Miniature jack, 3.5 DIA

Headphone Jack
Miniature jack, 3.5 DIA

Physical Dimensions (W x H x D)
Approx. 292 mm x 233 mm x 284 mm {Approx. 11.5” x 9.2” x 11.2”}

Weight Approx.
5.1 kg

Stock Availability: Discontinued - No longer available
